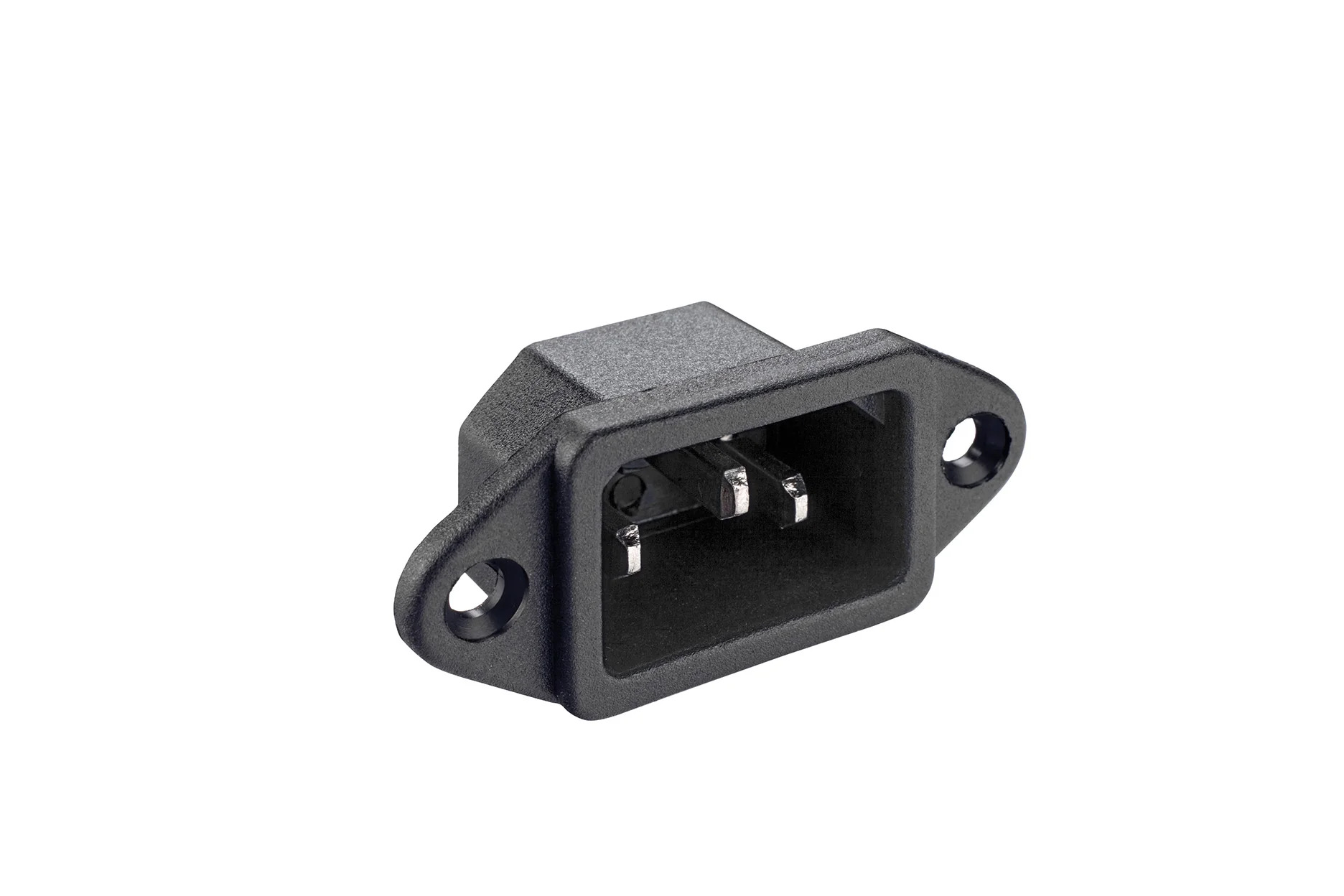

EMI-20 Mains Inlet

The EMI-20 is a high-quality IEC 60320 C14 panel-mount AC mains inlet designed for reliable power entry in electrical and electronic equipment. Rated at 10A/15A, 250VAC, it features a screw-mount design, high-quality brass contacts, and a flame-retardant polyamide housing for long-lasting performance. It is widely used in SMPS, UPS systems, industrial control panels, medical equipment, laboratory instruments, telecom equipment, and consumer electronics.

( No Reviews )

₹ 295.00

Order From Whatsapp

Tags emi-20 mains inlet inlet emi-20 mains inlet

No Cancellation

No Returnable

Product Details

Parameter	Specification
Model	EMI-20
Product Type	IEC AC Mains Inlet
Connector Type	IEC 60320 C14 Appliance Inlet
Current Rating	10A (VDE) / 15A (UL, cULus)
Voltage Rating	250 VAC
Frequency	50/60 Hz
Mounting Style	Panel Mount
Mounting Method	Screw Type
Panel Cut-out	31.2 × 23.2 mm (Rear Mount) / 28.0 × 20.0 mm (Front Mount)
Terminal Type	Solder Type / Fast-on 2.8 mm, 4.8 mm or 6.3 mm
Contact Resistance	≤ 10 mΩ (Initial)
Insulation Resistance	≥ 1000 MΩ @ 500 VDC
Dielectric Strength	2 kVAC for 1 Minute
Operating Temperature	0°C to +70°C (VDE), 0°C to +65°C (UL)
Soldering Temperature	270°C for 5 Seconds (Max.)
Housing Material	Nylon-6, Glass Filled (GF20%), V-2
Terminal Material	Brass, Tin Plated
Contact Material	Brass, Nickel Plated
Reference Standards	IEC 60320-1, IEC 60320-3, UL 498, CSA C22.2 No.182.3
Approvals	VDE, cULus
Compliance	CE, RoHS
Applications	SMPS, UPS Systems, Industrial Control Panels, Medical Equipment, Laboratory Instruments, Telecom Equipment, Consumer Electronics
