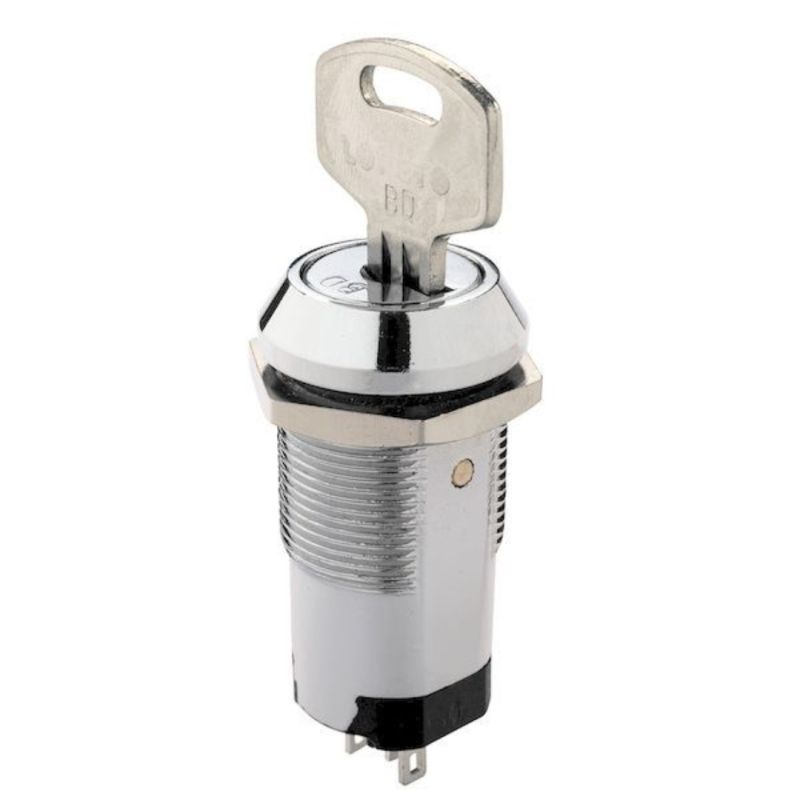

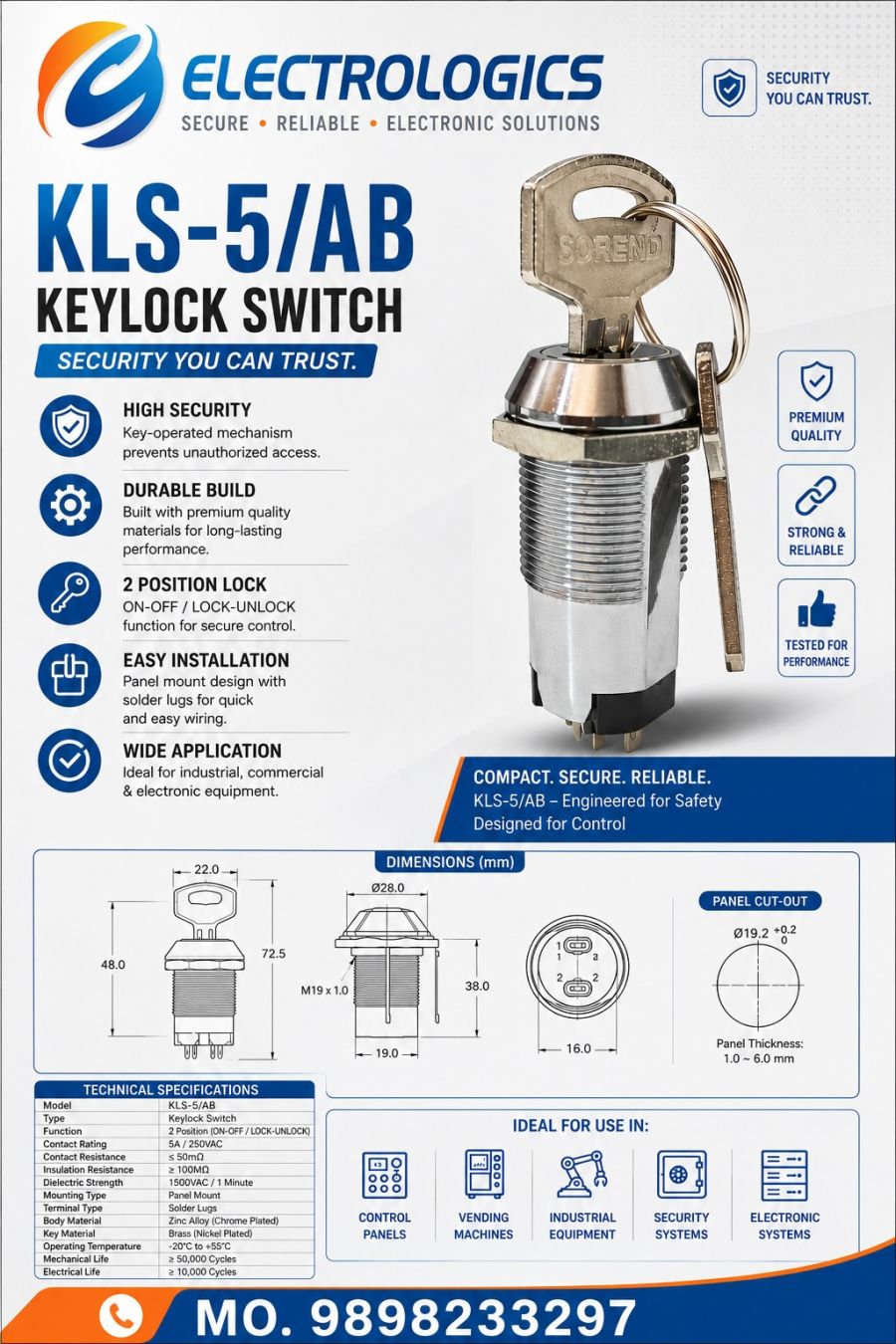

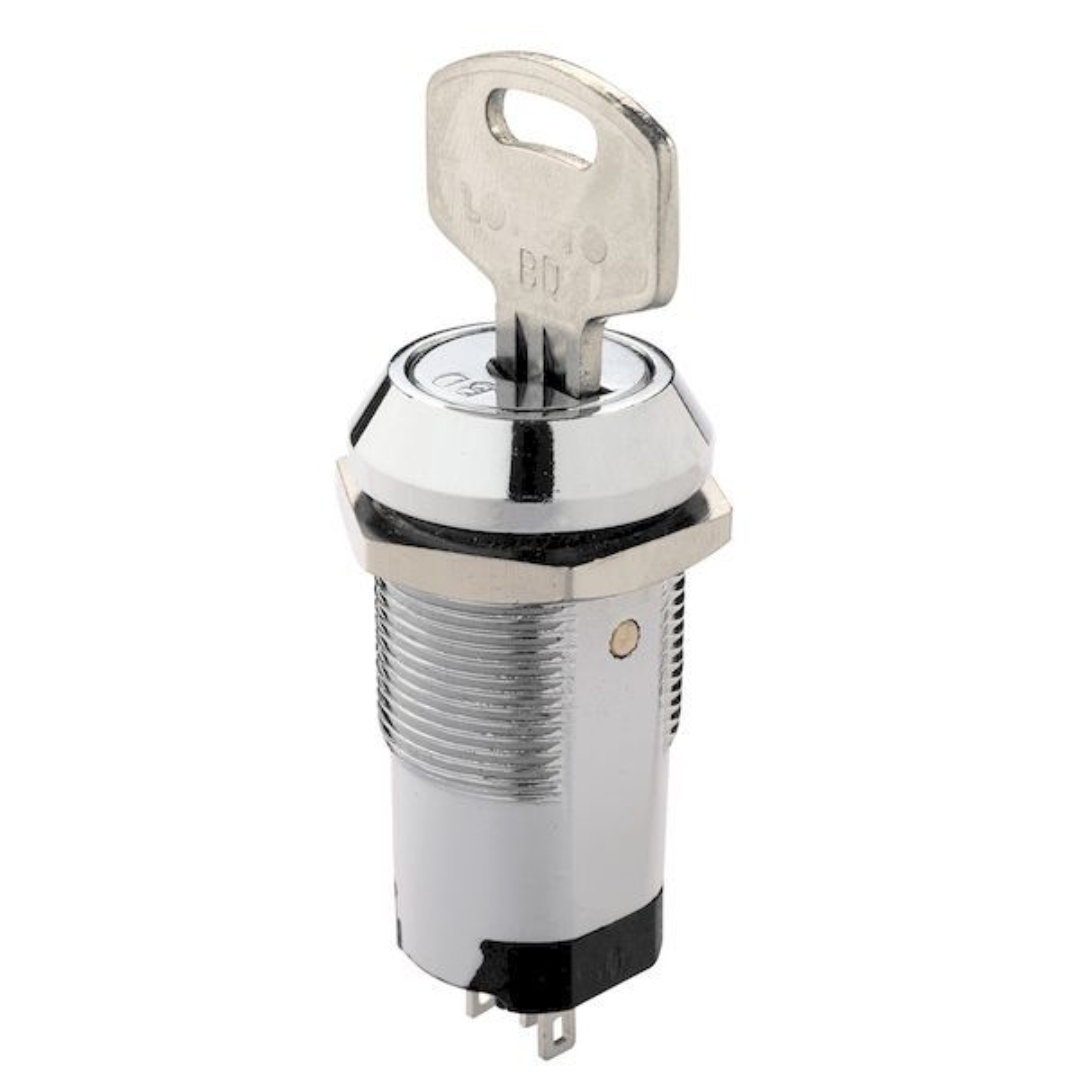

KLS-5 A/B Keylock Switch
The KLS-5A/B is a panel-mounted SPDT key lock switch designed for secure control of electrical equipment. It features a durable metal body, silver-plated contacts, and a rating of 3A at 250VAC. The switch provides reliable operation with up to 10,000 electrical cycles and is commonly used in industrial control panels, security systems, power equipment, and access-controlled devices.
| Parameter | Specification |
|---|---|
| Product Type | Key Lock Switch |
| Model | KLS-5A/B Series |
| Contact Arrangement | SPDT (Single Pole Double Throw) |
| Switch Operation | Key Operated |
| Key Removal | 1 or 2 Positions (depending on variant) |
| Contact Rating | 3A @ 250VAC, 1A @ 24VDC |
| Contact Resistance | 10 mΩ max (initial) |
| Insulation Resistance | 100 MΩ min @ 500VDC |
| Dielectric Strength | 1 kVAC for 1 minute |
| Electrical Life | 10,000 cycles minimum |
| Operating Temperature | -25°C to +85°C |
| Soldering Temperature | 270°C for 5 seconds max |
| Mounting Type | Panel Mount (Screw Mount) |
| Terminal Type | Solder Lug |
| Body Material | Mazak |
| Terminal Material | Copper, Silver Plated |
| Contact Material | Silver-Plated Copper Alloy |
| Key Combinations | Up to 48 |
| Compliance | IEC 61058-1, UL 1054, CE/RoHS (variant dependent) |
₹ 210.00
₹ 250.00
