LRH-32 LED Holder

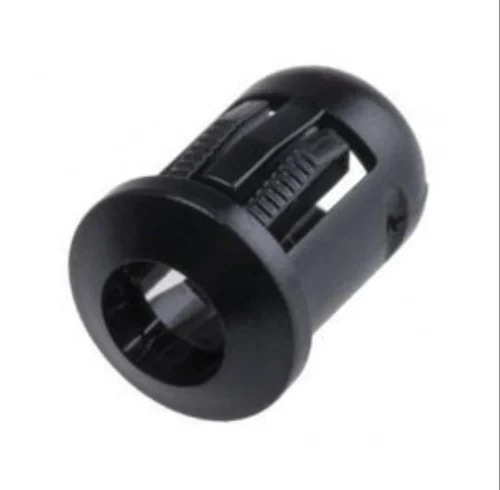

The LRH-32 is a panel-mount snap-in LED holder with a built-in bi-colour LED (common cathode), designed to provide reliable dual-status indication in electrical and electronic equipment. Manufactured with a durable nylon housing, it features a snap-in mounting design and solder-type terminals for quick installation and secure electrical connections. The LRH-32 is ideal for industrial control panels, power supplies, laboratory instruments, medical equipment, communication systems, automation equipment, and test & measurement instruments. It offers long service life, low power consumption, and a professional panel appearance.
(
No Reviews )
₹ 47.20
Add FAQ
| Parameter | Specification |
|---|---|
| Model | LRH-32 |
| Product Type | Panel Mount LED Holder with Built-in Bi-Colour LED |
| LED Type | Bi-Colour LED (Common Cathode) |
| Rated Current | 20 mA |
| Forward Voltage | 2.0–2.2 VDC (Typical, depends on LED colour) |
| Mounting Style | Panel Mount, Snap-In |
| Termination Type | Solder Terminals |
| Body Material | Nylon |
| Body Color | Black |
| Mounting Hole Diameter | 8.3 mm |
| Operating Temperature | -20°C to +85°C |
| Soldering Temperature | 270°C for 5 Seconds (Max.) |
| Applications | Industrial Control Panels, Power Supplies, Laboratory Instruments, Medical Equipment, Communication Equipment, Automation Systems, Test & Measurement Equipment |
