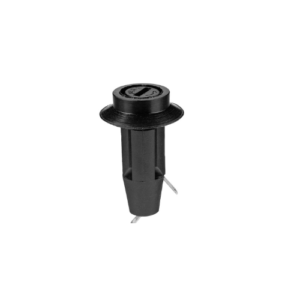

PFH-9 Fuse Holder
The PFH-9 is a panel snap-in fuse holder designed for 5 × 20 mm glass or ceramic cartridge fuses, providing reliable overcurrent protection in electrical and electronic equipment. Rated at 6.3A, 250VAC, it features a snap-in panel mounting design, a coin-slot fuse cap for easy fuse replacement, solder terminals, and a durable nylon housing. Its compact design makes it ideal for power supplies, industrial control panels, medical equipment, laboratory instruments, UPS systems, consumer electronics, and automation equipment.
(
No Reviews )
₹ 59.00
Add FAQ
| Parameter | Specification |
|---|---|
| Model | PFH-9 |
| Product Type | Panel Snap-In Fuse Holder |
| Fuse Size | 5 × 20 mm Glass/Ceramic Cartridge Fuse |
| Rated Current | 6.3 A |
| Rated Voltage | 250 VAC |
| Mounting Style | Panel Snap-In |
| Cap Type | Coin Slot Cap |
| Panel Thickness | Up to 1.5 mm |
| Termination Type | Solder Terminal |
| Contact Material | Copper Alloy, Tin Plated |
| Body Material | Nylon |
| Body Color | Black |
| Contact Resistance | ≤ 10 mΩ |
| Insulation Resistance | ≥ 1000 MΩ @ 500 VDC |
| Dielectric Strength | 2 kVAC for 1 Minute |
| Operating Temperature | -20°C to +85°C |
| Reference Standard | IEC 60127-6 |
| Compliance | CE, RoHS (on request) |
| Applications | Power Supplies, Industrial Equipment, Medical Devices, Laboratory Instruments, Consumer Electronics, UPS Systems, Test & Measurement Equipment, Automation Panels |
